Rectangular Permanent MCS

MCS Chucks
Precision Rectangular Fine pole

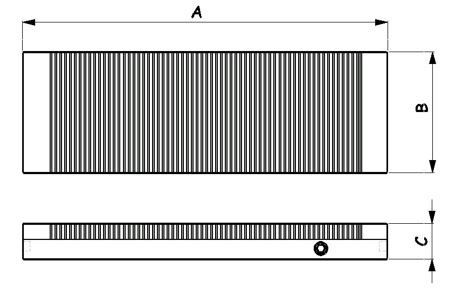

The MCS range of magnetic chucks provides revolutionary Universal fine pole pitch.

Designed specifically to eliminate the need for two types of chuck, the universal pole pitch (4mm Steel + 2mm Brass) provides excellent workholding for both small or thin components as well as thicker or large work pieces.

SOLID STEEL BODY

The main body of the chuck is produced from one solid piece. This gives excellent stability, wear and durability characteristics even in the most arduous applications.

ALL METAL TOP PLATE

The working face of the chuck is most important; it must maintain its accuracy and provide a stable working surface. This is why each of the poles is assembled and bonded in the MCS range. Using this method means the top plate of the chuck is essentially one solid piece ensuring the greatest strength and rigidity which will provide reliable accuracy for the lifetime of the chuck.

DOWNLOAD BROCHURE

BUY NOW

SWITCHING

The actuation of the MCS chuck is a precision rack and pinion system. This means the effortless rotation of the actuation using the key provided moves the magnetic grid inside the chuck to the on position and hence providing magnetic power to your component.

POWER

The high power magnetic field is provided by the world highest performance rare earth magnets (Neodymium). All of our magnets are nickel plated. This environment means the magnets are completely protected and cannot degrade in any way. This ensures maximum power is provided for the complete lifetime of the chuck.

UNIVERSAL MOUNTING & SIDE STOPS

All MCS Magnetic Chucks are manufactured with solid clamp flanges and provided with our quality chuck clamps to mount your magnetic chuck to the machine table.

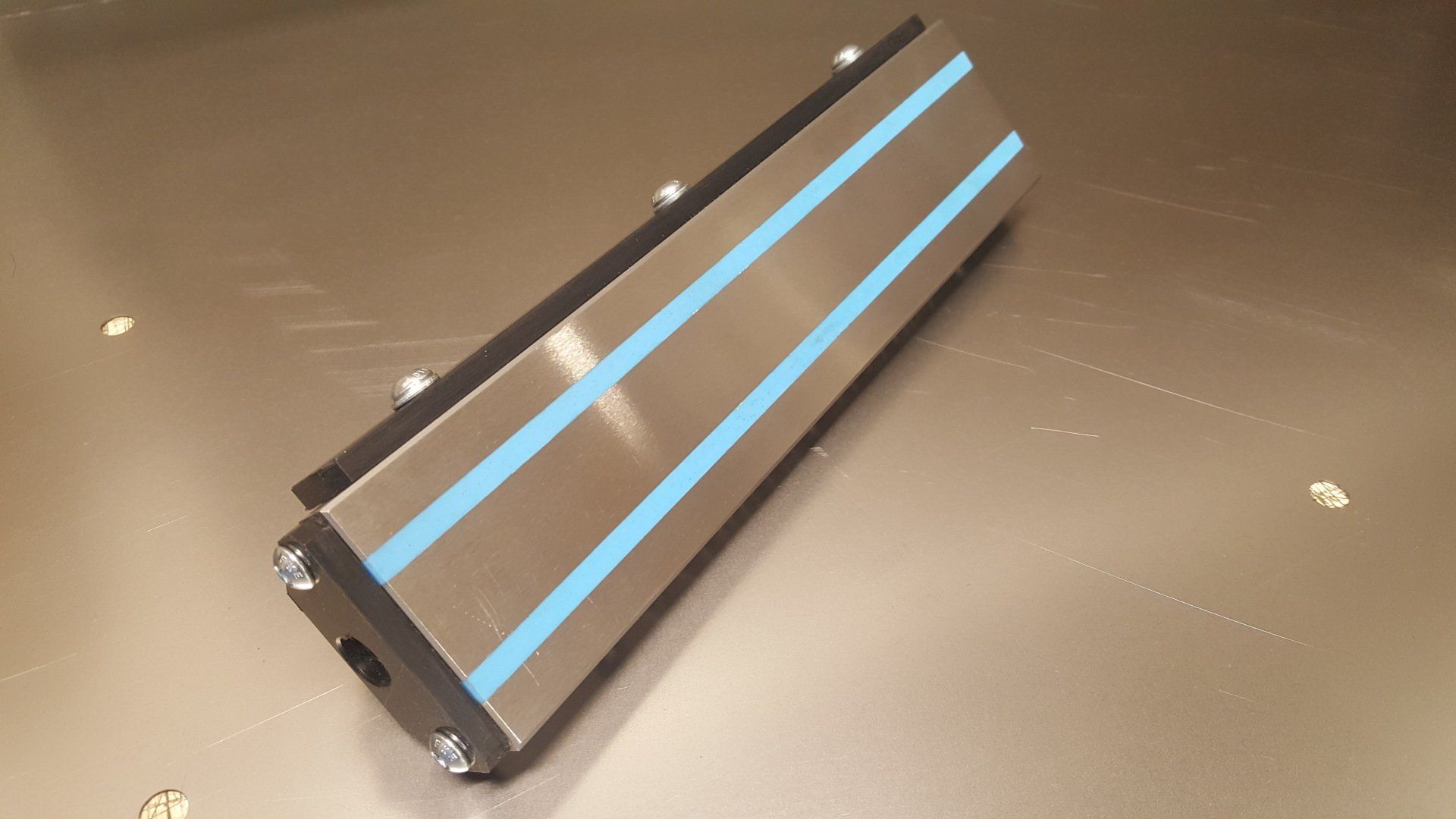

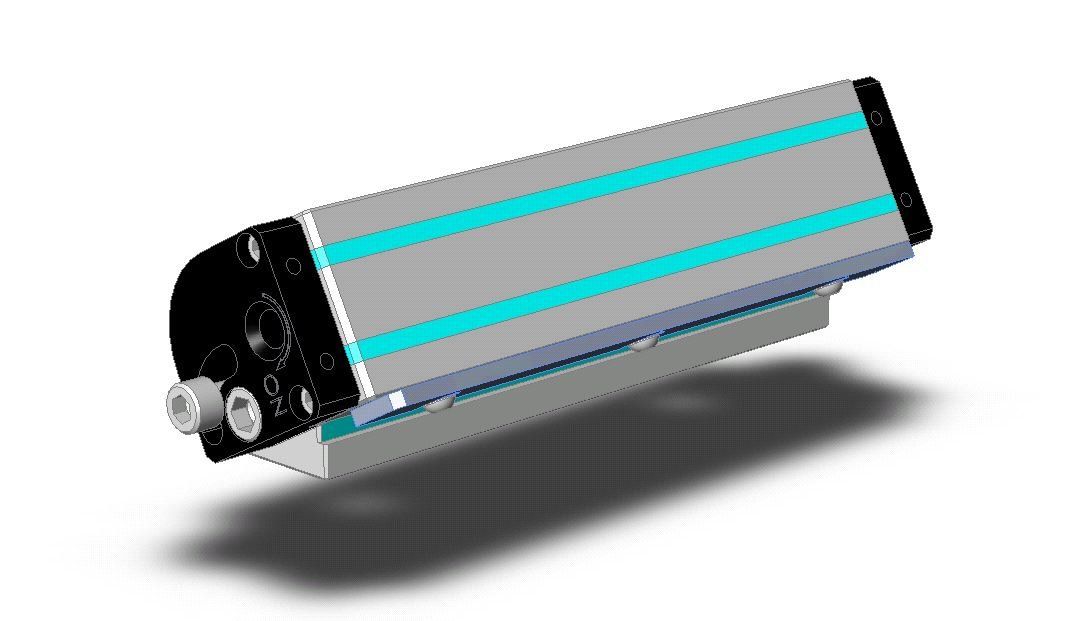

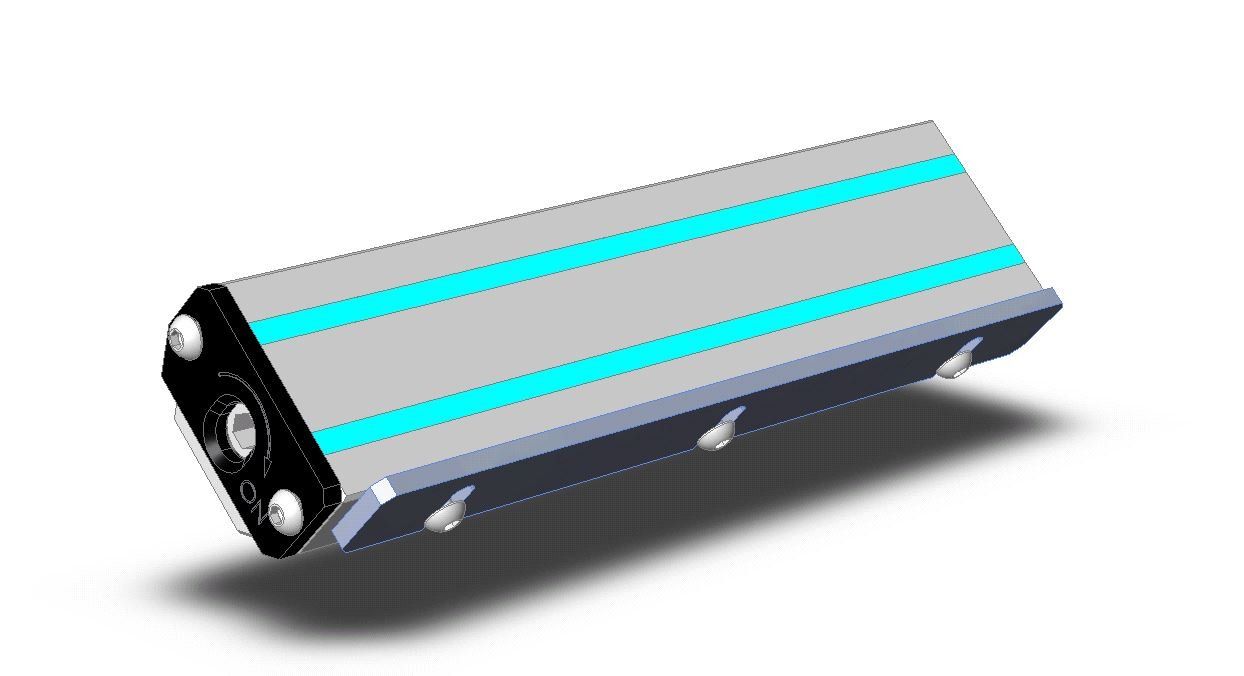

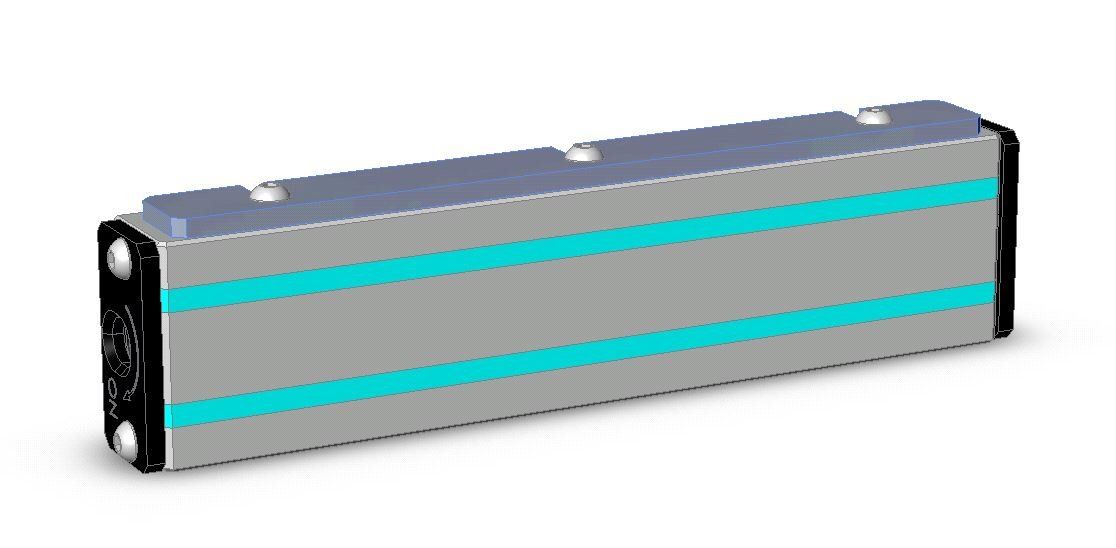

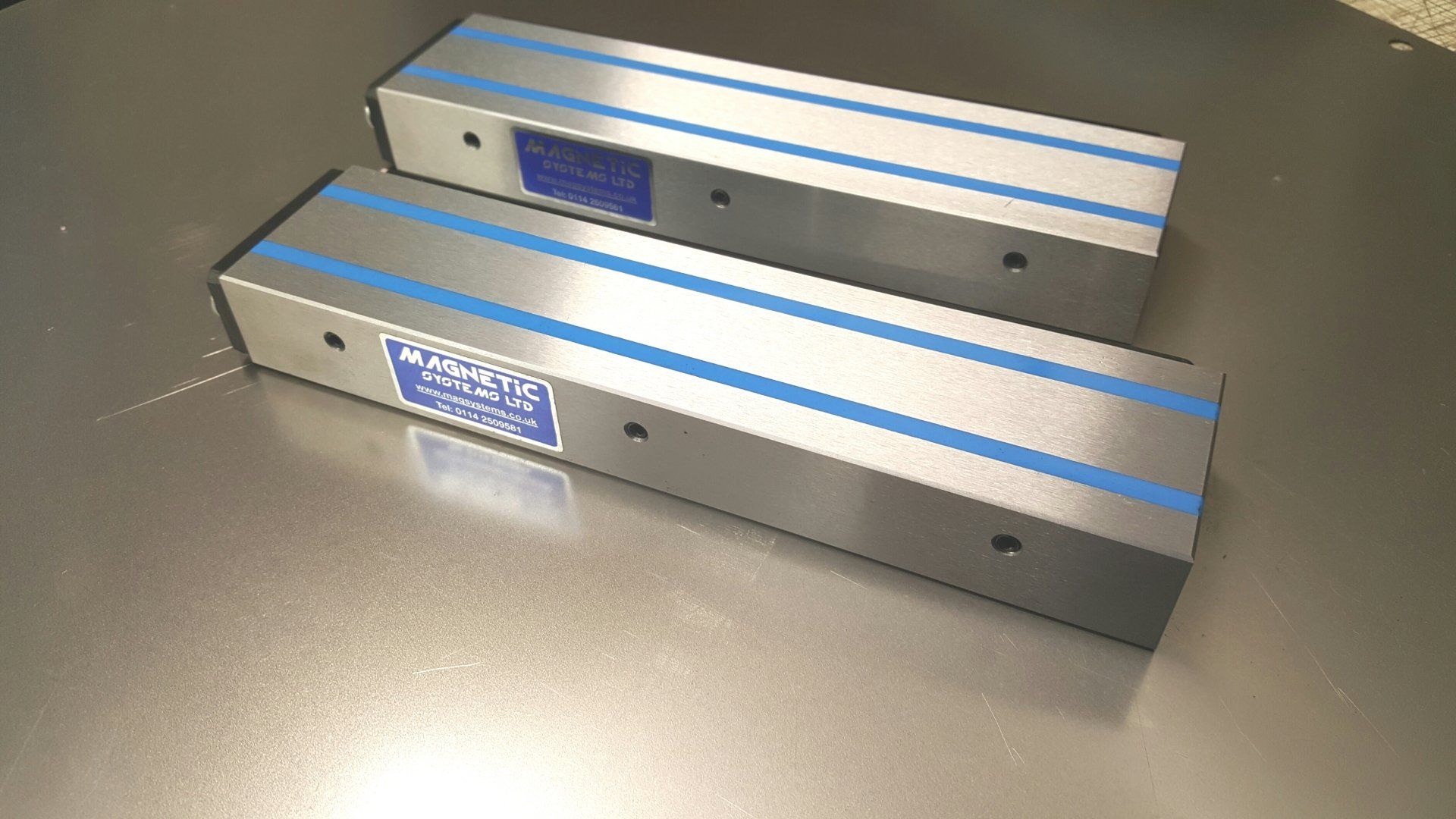

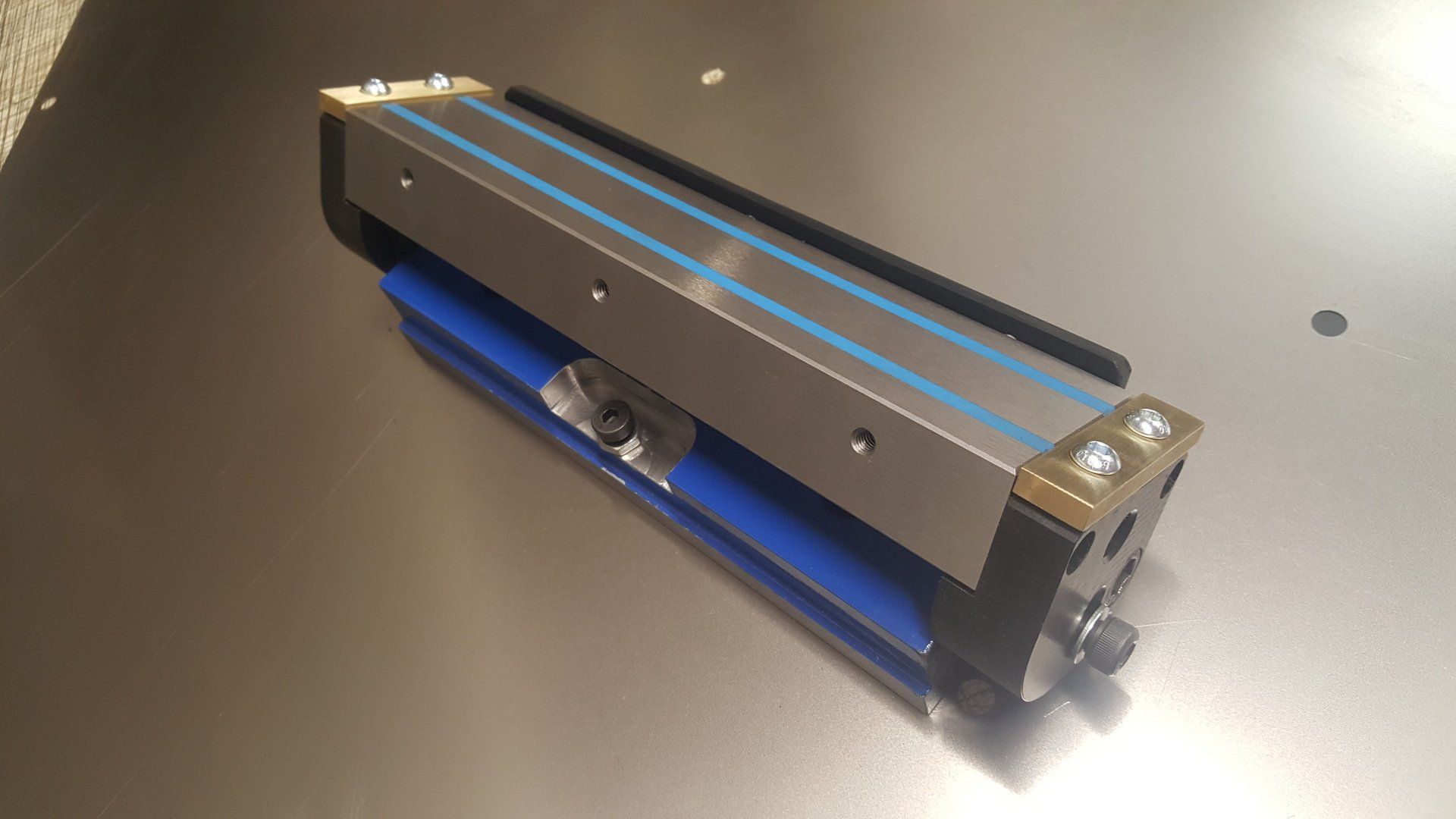

Azimuth range provides its own high force switchable magnet power the clamping force is much greater than the normal transferred magnetism of standard laminated chuck blocks.

It also means you don’t have to turn off your magnetic chuck to release the parts so the Azimuth stays exactly where you want it for exact repeatability.
