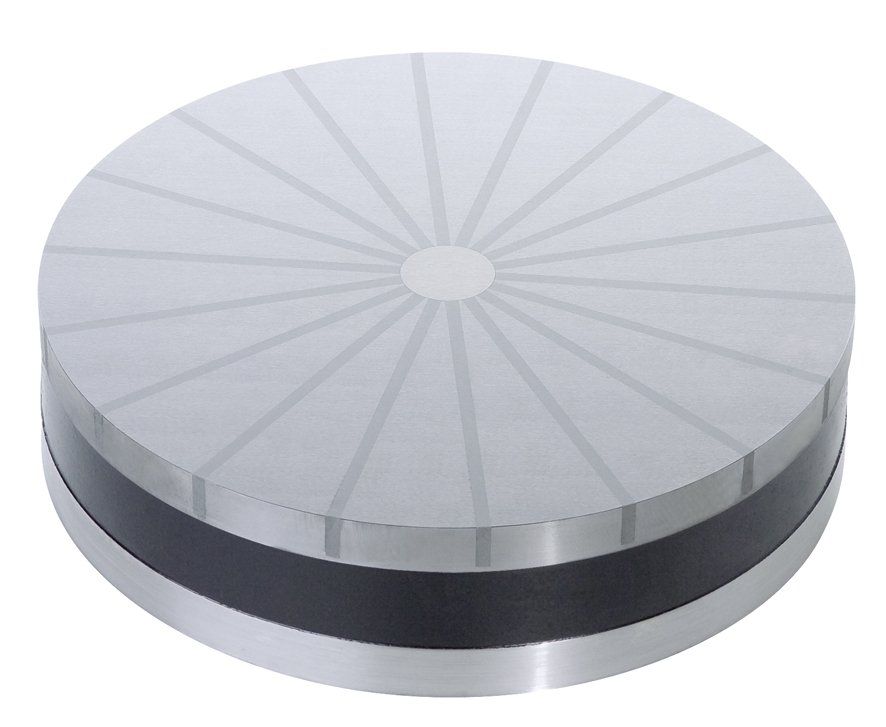

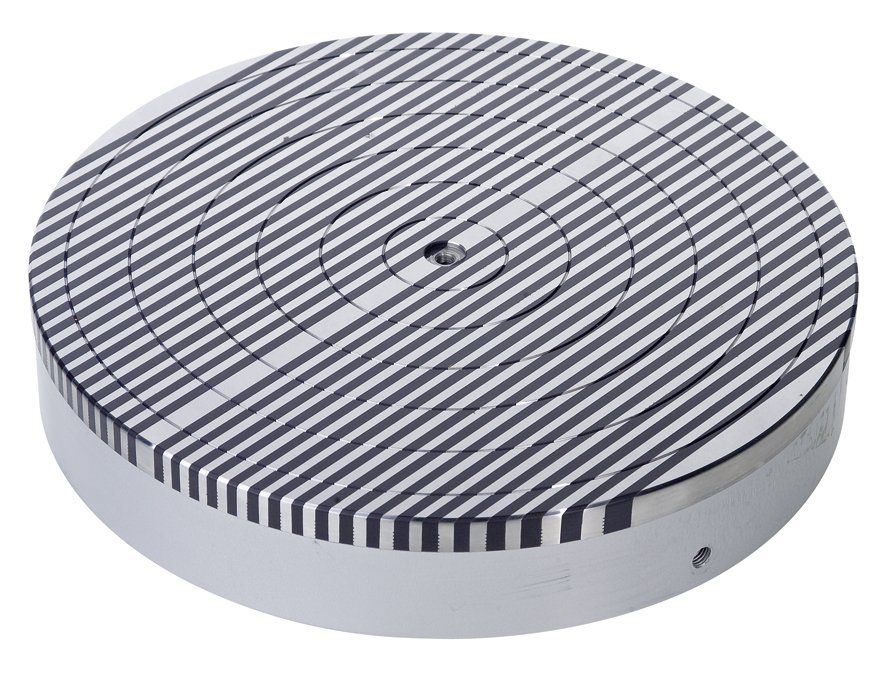

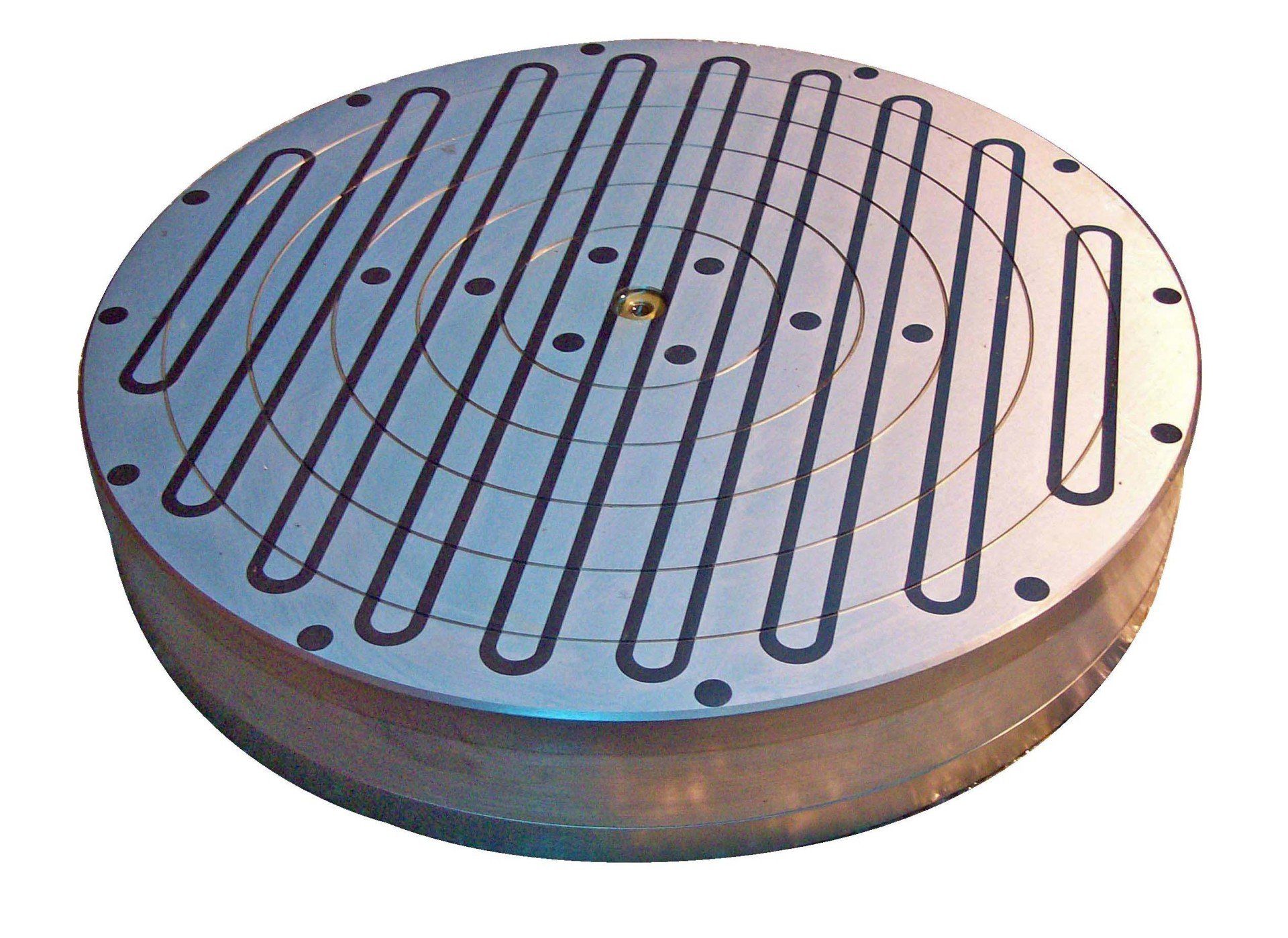

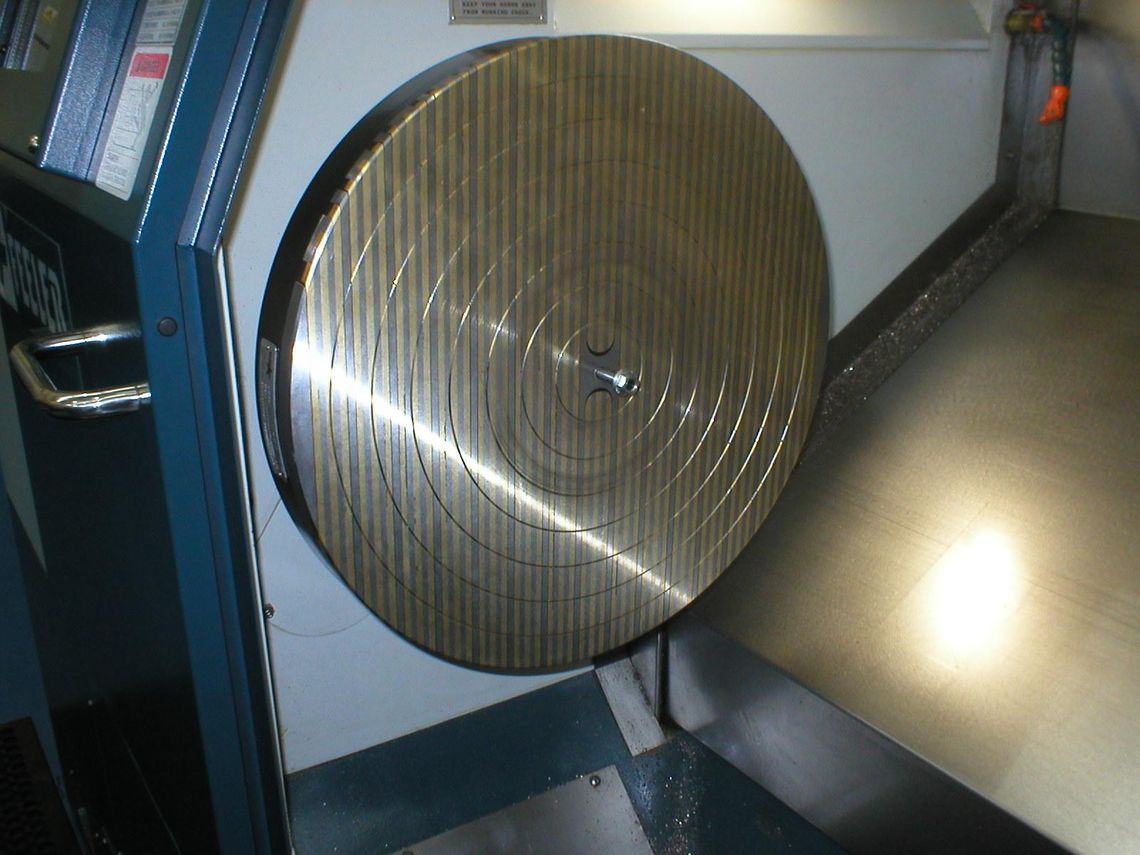

Electro-Permanent Circular Magnetic Chucks For Grinding

Universal fine pole pitch available in four versions means we can provide the best chuck to suit your application. Having multiple and close magnetic paths with a very reduced flux short circuiting depth (5mm), thus being able to generate a safe holding power for thin and small work pieces as well as for larger parts.

The steel-brass combination on the whole surface assures excellent stability over time and a better possibility for high tolerances.

The totally active surface maximises the performance of the machine. Since it is possible to position the parts freely without stops and a larger production rate will be achieved.

All of our PM60 chucks electro-permanent. This means the chuck only uses power in the magnetise and demagneise cycles (approximately one second). This means that even in the event of total power failure to your machine or building the chuck will remain on and at full power indefinitely.

Additionally because no power is consumed in the machining cycle the chuck is a cold chuck and does not generate and heat making it the most stable and accurate chuck on the market. Electro-permanent systems also save you money on your electricity consumption making it the greener option today.
