Circular Permanent MSR
MSR Chucks Radial Pole High Power

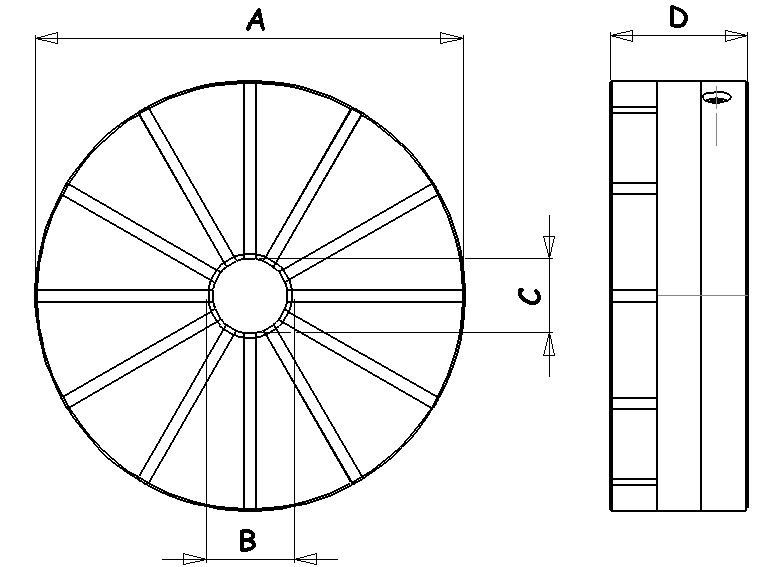

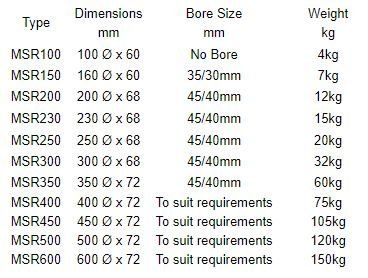

MSR Chucks
Radial Pole High Power
MSR chucks provide high power magnetic work holding, ideal for both ring type and conventional work pieces.
This is achieved by the radial pole design; it allows a completely even clamping force up to 12-15 kg/cm sq. over the entire component.
SOLID STEEL BODY
SOLID STEEL BODY
The main body of the chuck is produced in 304 Stainless Steel. This gives excellent wear and durability characteristics even in the most arduous applications.

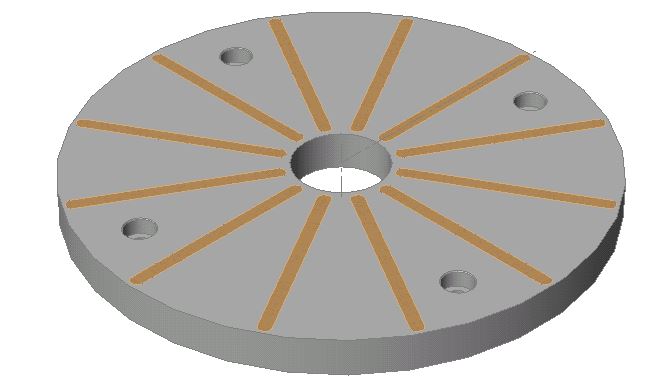

ALL METAL TOP PLATE
ALL METAL TOP PLATE

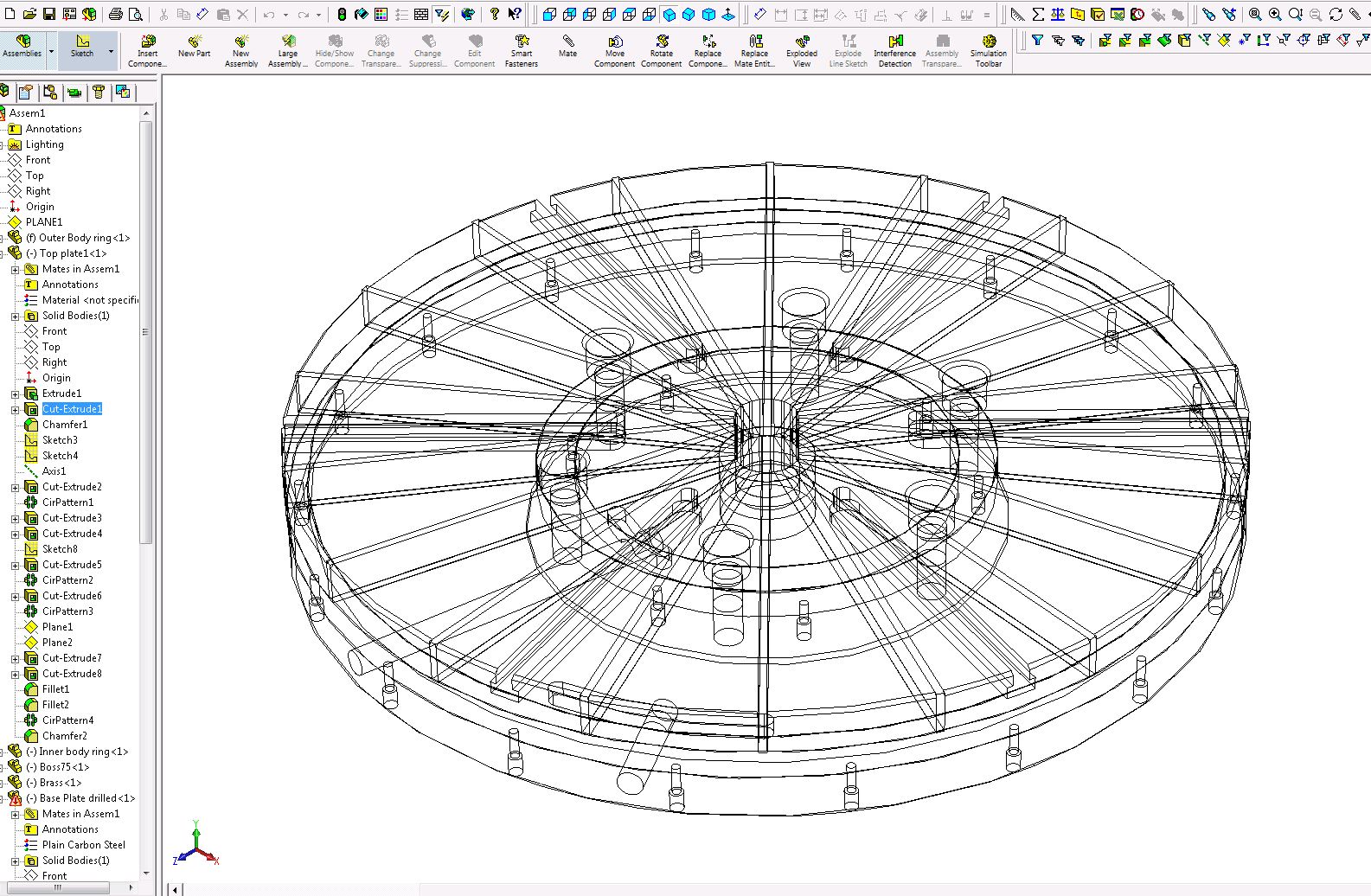

The working face of the chuck is most important; it must maintain its accuracy and provide a stable working surface. Therefore, each of the poles in the MSR range is individually welded to the Stainless body rings. Using this method means the body and top plate of the chuck are essentially one solid piece ensuring the greatest strength and rigidity.

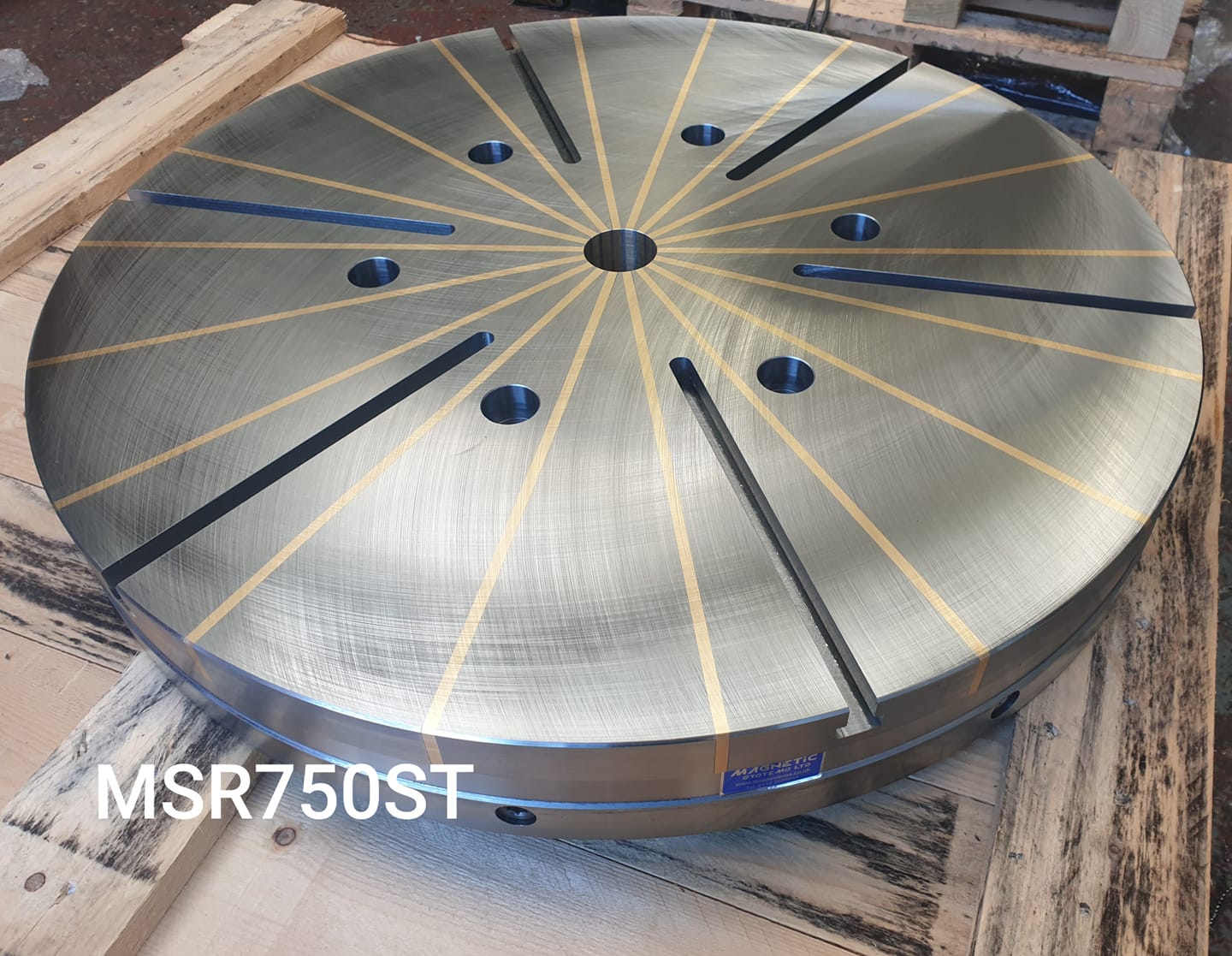

Special Hybrid Magnetic Chuck Incorporating T slots into the MSR radial chuck opens new oportunities.

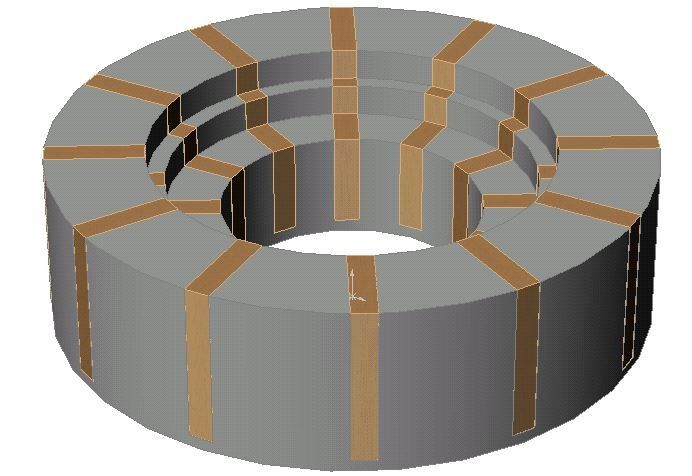

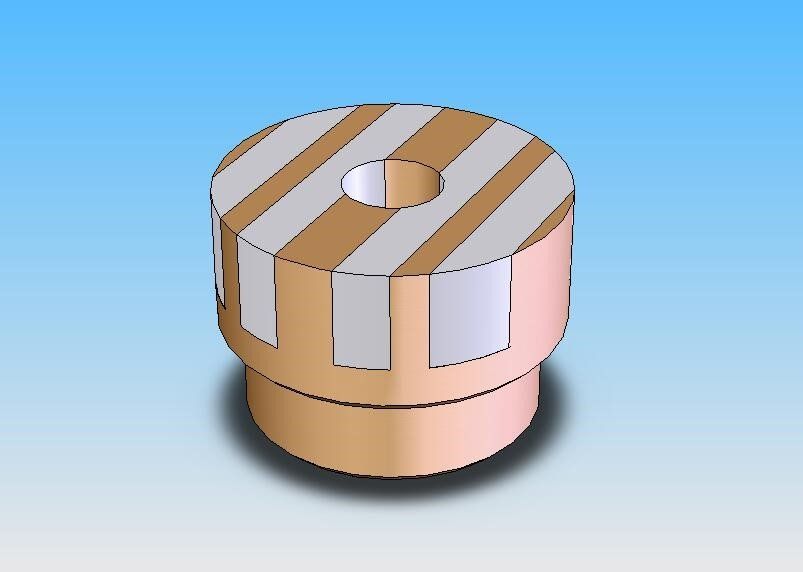

Only Magnetic Systems have the expertise to provide you with exactly what you want. We can produce the MSR range with extra features and in sizes that suit your individual requirements. This can include specific features such as T Slots, through clamping, pole extensions and different through bores.
Don't be limited by whats available tell us what you want
Radial pole, even clamping forces
High Stability
Cold chuck
Ultimate Accuracy
Variable Power
Balanced
SWITCHING
The actuation of the MSR chuck is manufactured from hardened and tempered rack and pinion system. Simple rotation of the pinion shaft using the key provided engages the gear teeth and moves the magnetic grid inside the chuck to the on position and hence providing magnetic power to your component.
POWER
The high power magnetic field is provided by the latest rare earth magnet (Neodymium). All our magnets are nickel plated and resin encapsulated within the magnetic chuck. This environment means the magnets are completely protected and cannot degrade in any way. This ensures maximum power is provided for the complete lifetime of the chuck.
UNIVERSAL MOUNTING
All MSR magnetic chucks are manufactured without mounting details. This is because there are many different types and hole patterns required by our customers. For this reason, we offer to machine in any mounting details required to suit your machine completely free of charge
